GPS receiver (NEO-6M)

A module that talks on its own: NMEA sentences on a serial port, once a second, decoded with TinyGPS++.

What it is

A GPS module is a computer of its own: it finds satellites and, once a second, sends its position as text lines in the NMEA format over a serial port at 9600 baud — nobody asks, it just talks. The firmware reads the port and decodes the sentences; TinyGPS++ does the decoding.

In the simulator

The block's sliders are what a moving receiver would report: Spd (km/h), Hdg (course) and Sat (satellites in view — fewer than 3 gives no fix, and the sentences go out empty, as the real module does). The position itself — latitude, longitude, altitude — is in Settings, Brasília by default, and so is the UART the bytes arrive on.

Pins

Wiring

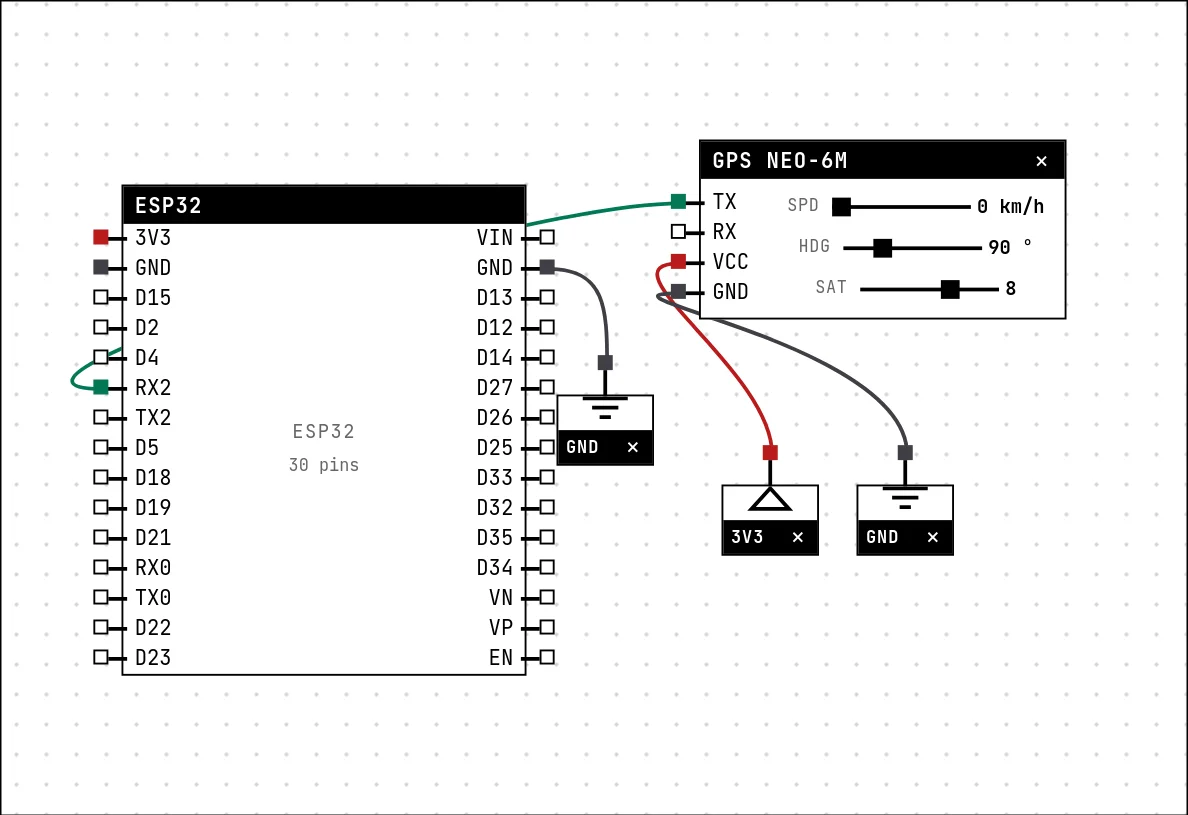

The circuit below is the example GPS tracker from the lab — open it with Project → Open example… and it comes ready to run.

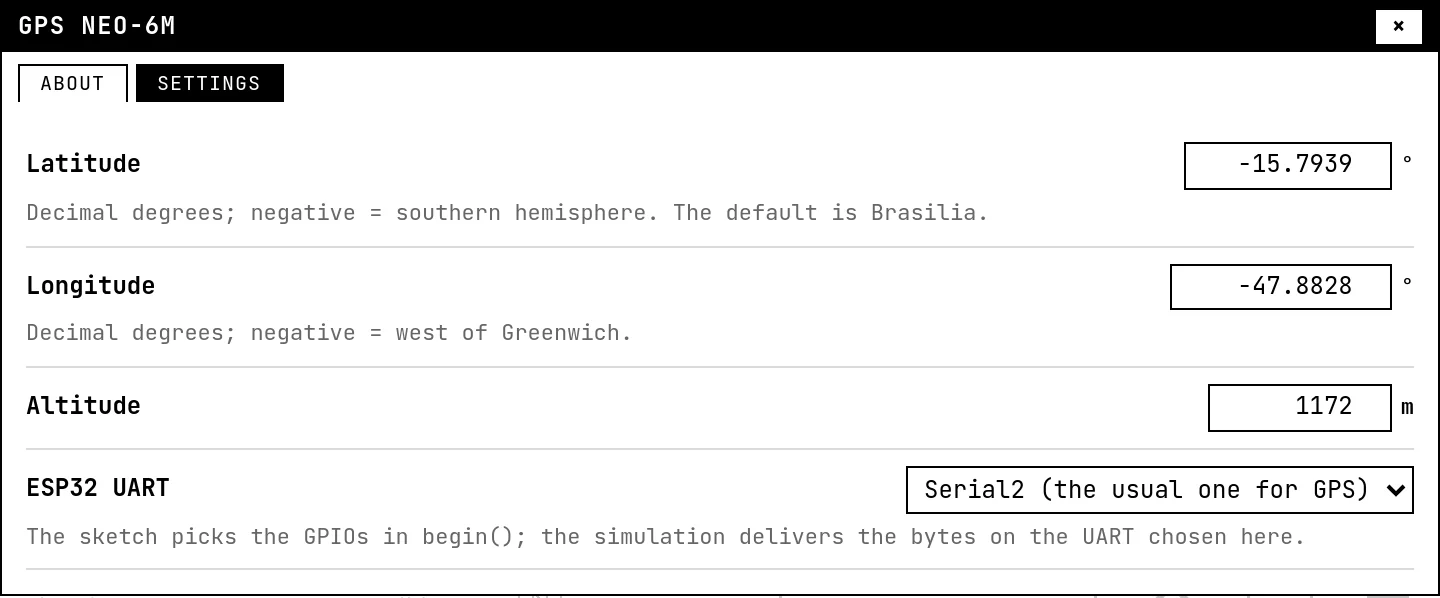

Settings

Double-click the block's title bar to open its card, then the Settings tab. Changes apply to the running simulation right away.

Code

#include <Arduino.h>
#include <TinyGPSPlus.h>

// The NEO-6M talks on its own: NMEA 0183 at 9600 baud, one packet per second.
// On the ESP32 Serial2 listens on any GPIOs — here RX=16 (the module's TX).
TinyGPSPlus gps;

// landmark to measure the distance to: Praca dos Tres Poderes, in Brasilia
const double MARCO_LAT = -15.8002, MARCO_LON = -47.8610;

void setup() {
  Serial.begin(115200);
  Serial2.begin(9600, SERIAL_8N1, 16, 17);
  Serial.println("waiting for the first NMEA packet...");
}

void loop() {
  while (Serial2.available()) gps.encode(Serial2.read());

  static unsigned long antes = 0;
  if (millis() - antes < 1000) return;
  antes = millis();

  // CLASSIC TinyGPS gotcha: isValid() latches on the last good value and
  // never goes back to false. What tells you the fix DROPPED is the AGE of the
  // data — with no satellites the module stops sending position and age() climbs.
  if (!gps.location.isValid() || gps.location.age() > 3000) {
    Serial.printf("no fix (%d satellites)\n", (int)gps.satellites.value());
    return;
  }
  double dist = TinyGPSPlus::distanceBetween(
      gps.location.lat(), gps.location.lng(), MARCO_LAT, MARCO_LON);
  Serial.printf("%.4f, %.4f | %.0f km/h heading %.0f | %d sat | alt %.0f m | %.1f km to landmark\n",
                gps.location.lat(), gps.location.lng(),
                gps.speed.kmph(), gps.course.deg(),
                (int)gps.satellites.value(), gps.altitude.meters(),
                dist / 1000.0);
}

Serial2.begin(9600, SERIAL_8N1, 16, 17) opens the second serial port on the pins wired to the module; gps.encode() eats every byte. The example prints position, speed, heading, satellites, altitude and the distance to a landmark. Read its comment about isValid(): it never goes back to false — the age of the data is what tells you the fix was lost.

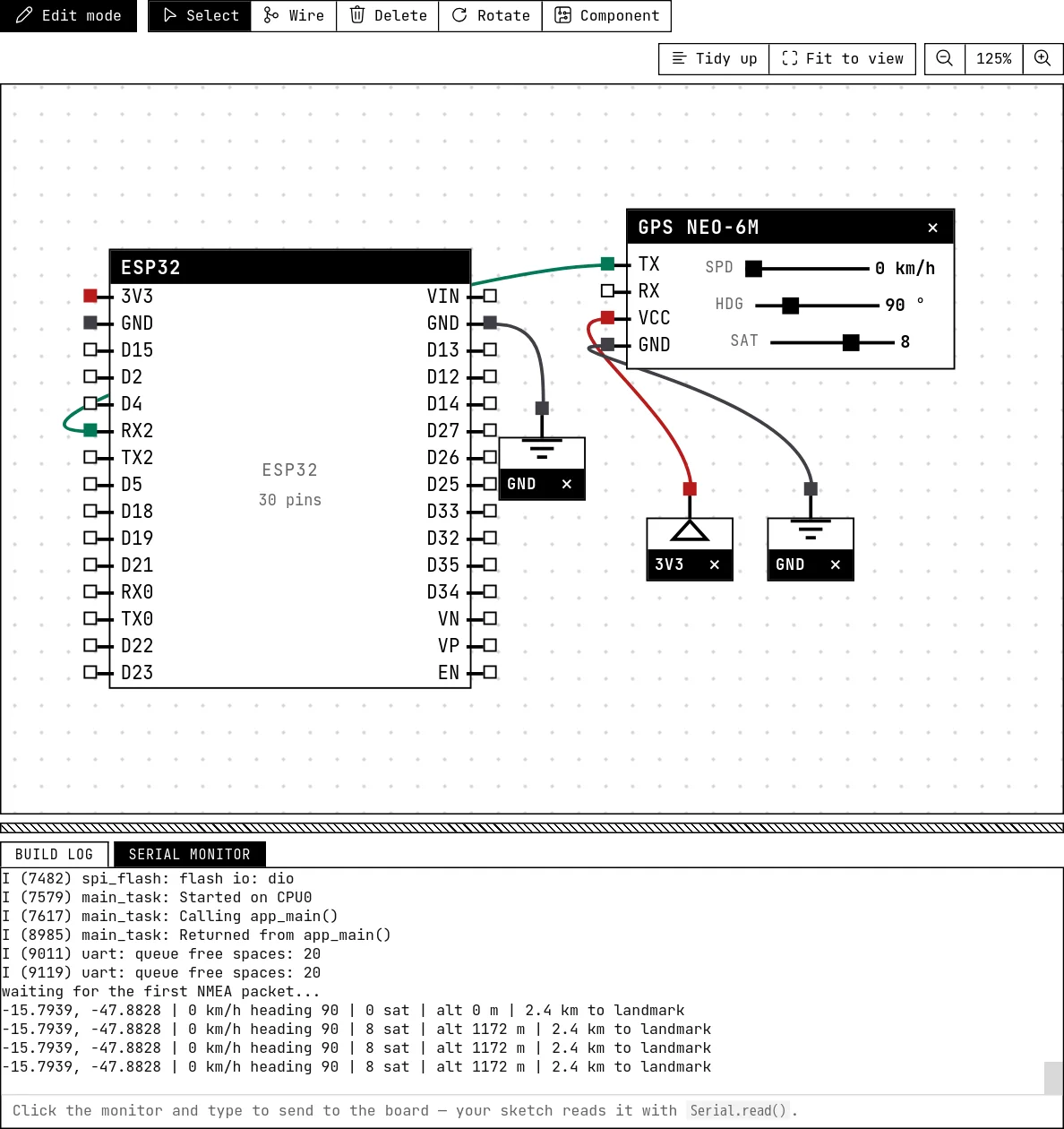

Run it

Press Build and run. The first build of a project takes a while; after that, only what changed is rebuilt.

Every second the serial monitor prints a line with the coordinates and the distance to the landmark. Drag Sat below 3: after three seconds the sketch reports “no fix”. Raise it again and the position returns.

How the simulation models it

• The simulation sends real NMEA: a RMC and a GGA sentence per second, with checksums, at the UART chosen in Settings, in two halves so the chip's serial buffer never overflows during a delay().
• The position does not move. Speed and heading go into the sentences and TinyGPS++ reports them, but latitude and longitude stay where Settings put them. Change them in Settings to “teleport”.
• Time in the sentences is the real clock (UTC). Satellites below 3 empty the position fields and mark the fix invalid.

Try this

1. Show the coordinates on the LCD, updated once a second.
2. Log a line to the SD card on every fix: a track you could plot on a map.
